The Legacy Printing & Moisture-Proofing Process of Corrugated Board: A Blueprint for Modern Automation
How did early packaging plants handle multi-stage graphics and manual waterproofing? Explore the evolution to high-speed inline converting lines.
Deconstructing the Traditional Corrugated Printing Workflow
In the early days of packaging production, the printing phase served a dual purpose: rendering precise text, branding logos, and trademarks onto the carton surface while simultaneously applying specialized oil-based coatings to achieve an aesthetic finish and basic structural moisture resistance.
Historically, plants relied heavily on sheet-fed lithographic offset printing to process corrugated box liners. Because older offset litho setups could not handle thick, rigid corrugated boards directly without crushing the internal flutes, face papers had to be printed offline as flat sheets and subsequently laminated manually—a massive bottleneck for high-volume logistics.
The Rigorous Method of Offline Moisture-Proof Coating
Applying moisture-resistant oils under legacy frameworks was highly complex. While some low-tech operations resorted to labor-intensive manual brush coating, more advanced workshops modified their offset presses using a letterpress/relief printing principle:
"Operators cut rigid fiberboards into exact templates matching the targeted oil-coating areas, leaving specific zones raised (convex) and others recessed (concave). The moisture-proof oil transferred from ink rollers and zinc plates onto the raised rubber cylinders. As the corrugated sheet passed between the rubber and impression cylinders, a localized layer of water-resistant oil was deposited. Alternatively, smaller plants applied this glaze completely by hand."
This separate, offline step created immense margin erosion due to ink drying delays, high tooling consumption, and extensive floor clutter.
The Ultimate Upgrade: Inline Flexo Varnishing & Converting Lines
For modern packaging enterprises, separating printing, slotting, and waterproofing into independent manual steps is an unsustainable business model. Scaling up your plant yield requires a single, automated Corrugated Box Making Machine that integrates high-definition graphics and inline coating in a single pass.
Our premier range of Corrugated Carton Machinery completely replaces multi-stage litho-lamination with high-speed direct-to-board processing:
• High-Speed Flexo Printer Slotter with Inline Coating Units

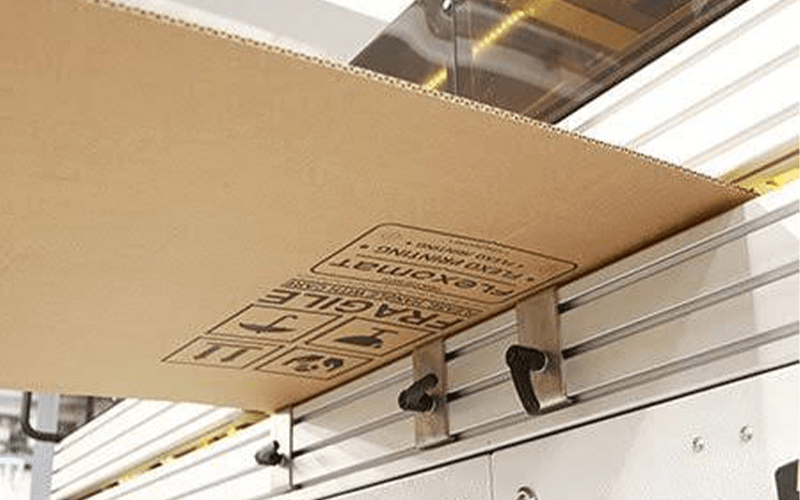

Instead of processing sheets offline, a modern Flexo Printer Slotter can be configured with an independent varnishing chamber. Utilizing water-based eco-inks or UV glazes, a High-Speed Flexo Printer applies high-resolution graphics and a seamless, full-surface moisture-proof coating simultaneously, delivering immediate sheet drying without flute distortion.
• Advanced Sheet Feeding Agility: Lead Edge vs. Chain-Fed Designs
To keep production lines moving flawlessly at 200+ sheets per minute, stable paper feeding is critical. A precision-engineered Lead Edge Printer uses vacuum absorption to easily feed heavy, warped, or double-wall boards without mechanical friction. For regional startups seeking a rugged, highly economical entry point into automated slotting, our heavy-duty Chain-Fed Printer Slotter models deliver uncompromising mechanical reliability and long-term durability.
• End-to-End Plant Optimization
Maximize your floor efficiency by pairing your printing assets with an automated inline Stitching & Gluing Machine to instantly complete manufacturers' joints, and deploy smart Corrugated Peripheral Machinery (like auto-stackers, pre-feeders, and continuous material conveyors) to remove all manual material-handling bottlenecks.
🚀 Eliminate Labor Bottlenecks and Capture High-Volume Packaging Contracts
Are manual oiling steps, ink drying delays, or slow decoupled offline machines keeping your factory from expanding its margins? Upgrade your production floor to heavy-duty automation.
As an industry-leading manufacturer of high-end Corrugated Packaging Machinery, we build rugged, automated inline flexo lines engineered to deliver pristine color register, consistent moisture-proof finishes, and exceptional throughput speed to skyrocket your plant's ROI.
