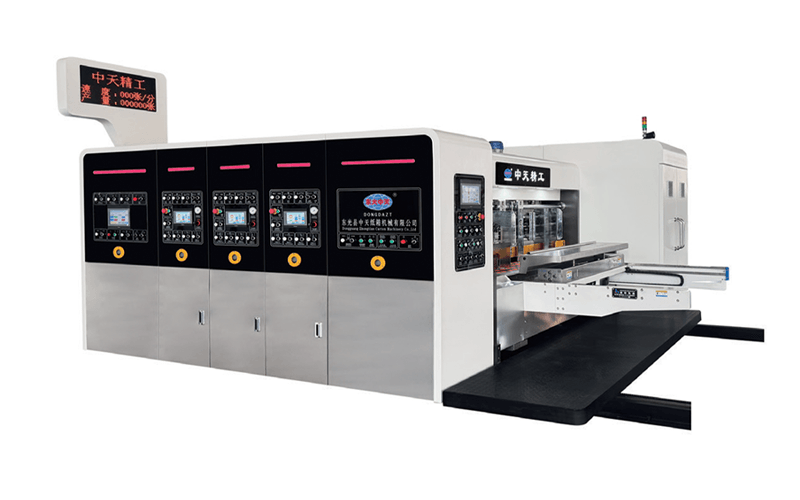

Automatic High-Speed Flexo Printer Slotter Die-Cutter

Automatic High-Speed Flexo Printer Slotter Die-Cutter

Heavy-Duty Engineering, Ultra-Fast Changeovers, and Precision Registration

Engineered for packaging plants demanding maximum versatility and high-speed efficiency. This robust system delivers fully computerized order management, exceptional durability under high-torque conditions, and flawless printing/die-cutting accuracy for complex box designs.

🏆 CORE VALUE PROPOSITIONS & MAIN FEATURES

⚡ 1. Rapid Order Changeovers & Smart Automation

• One-Touch Dimension Setup: Simply input the cardboard dimensions on the HMI touchscreen, and the system automatically calibrates the entire line, including preset zeroing and memory reset across all sections.

• Intelligent Impression Calibration: All pressure rollers adapt automatically. The system continuously detects sheet thickness in real-time, instantly transmitting data to adjust gaps electronically for continuous, seamless production.

• Motorized Clearance Adjustments: Working gaps for all bottom rollers feature rapid, fully motorized control, allowing operators to execute precision gap updates in seconds.

• Energy-Efficient VFD Drive: The main motor is regulated via a variable frequency drive (VFD), ensuring smoother mechanical vibration-free startups, stable running, and minimized power consumption.

💪 2. Heavy-Duty Structural Build & Unmatched Longevity

• Stress-Relieved Heavy Frame: Machine side-frames and core load-bearing components undergo rigorous aging and tempering treatments to eliminate internal metal stress. All parts are precision-machined via advanced CNC grinding centers for rock-solid stability.

• Computer-Balanced Shafts & Rollers: Crafted strictly from premium high-grade alloy steel. Every shaft and roller undergoes advanced computer dynamic balancing calibration, surface grinding, and heavy hard-chrome plating to eliminate wear.

• Grade-6 Precision Gearing: Main drive gears are forged from 20CrMoTi alloy steel, subjected to carburizing and precision tooth-grinding to Grade 6 accuracy. This guarantees absolute, long-term multi-color registration accuracy over decades of heavy running.

• Zero-Backlash Keyless Connections: High-stress drive joints (shaft-to-gear connections) utilize premium keyless expansion sleeves (locking assemblies). This completely eliminates connection gaps, making the machine perfectly suited for high-torque, non-stop, high-speed runs.

🔧 3. World-Class Components & Hassle-Free Maintenance

• Premium Automation Architecture: Equipped with globally renowned international brands for all electrical hardware and computer software, ensuring a stable, bug-free operational lifecycle and easy order archiving.

• Genuine NSK Bearings: All critical moving parts and main drive positions exclusively feature world-class NSK bearings, significantly reducing friction, noise, and routine maintenance overheads.

• Automated Lubrication Balancing: Features an integrated, smart oil automatic balancing system that maintains lubricants at an identical level across all standalone units, preventing localized gear wear and simplifying daily inspection.

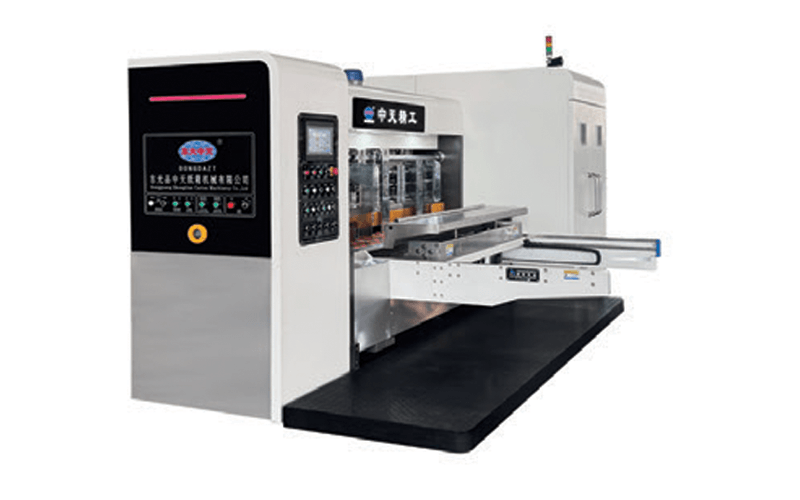

⚙️ HIGH-SPEED FEEDING SECTION

Precision and stability at the very first stage. This advanced Feeding Section ensures high-speed, non-stop board feeding while utilizing crush-free technology to fully preserve the structural strength of your corrugated sheets.

• Dual-Chamber Vacuum Lead Edge Feeder: Utilizes an advanced twin-blower vacuum absorption mechanism. Paired with Variable Frequency Drive (VFD) air volume regulation, it delivers exceptionally stable, slip-free, and high-precision sheet feeding across various flute profiles.

• Advanced Servo-Driven Feed System: Powered by a high-response servo motor, the system automatically calculates and dynamic-adjusts the feeding stroke based on the exact board length. This shortens setup times, boosts operational efficiency, and enhances positioning accuracy.

• Crush-Free Feeding System: Engineered with a non-crush feeding mechanism that completely eliminates surface compression and flute damage during transport. It guarantees that the raw cardboard's original compression and stacking strength remain 100% intact.

• Intelligent One-Touch Zeroing & Order Memory: Features a fully automated zero-return system that archives and recalls frequently used orders. Operators can execute ultra-fast order changeovers via the centralized computer control, significantly slashing downtime.

• Computerized Side Guides & Back Spacer: The left and right side baffles, along with the rear support plate, are fully computerized and driven via precision linear guiding mechanisms. This ensures smooth, rock-solid displacement and includes an integrated automatic side-slapping/squaring function for perfect sheet alignment.

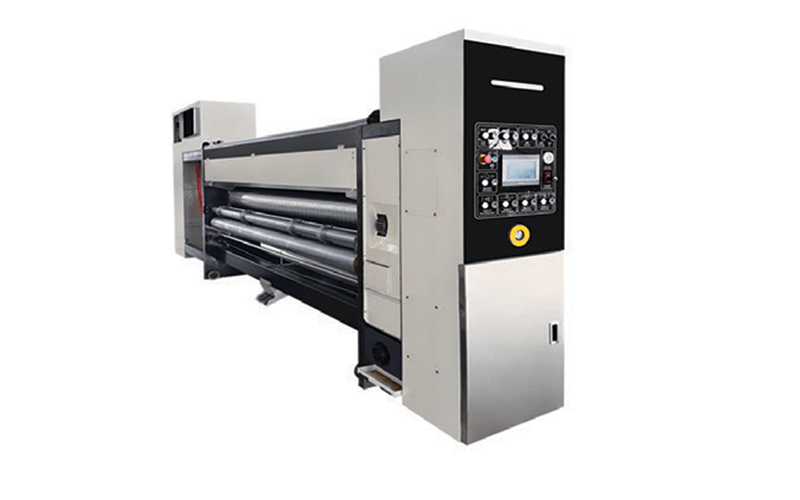

🎨 HIGH-PRECISION PRINTING SECTION

Engineered for high-fidelity graphics and lightning-fast setups. This unit combines premium ink metering with advanced servo-driven micro-adjustments, making it the perfect choice for plants running high-frequency order changes without sacrificing print quality.

• Planetary Gear Phase Adjustment & Servo Control: The printing phase utilizes a robust planetary gear structure managed by an intelligent PLC system with digital displays. Driven by high-response servo motors, the printing cylinders can be adjusted 360 degrees clockwise or counterclockwise during runtime, ensuring ultra-smooth starts/stops and rapid, pinpoint positioning.

• Precision-Ground Grid Cylinder for Fast Mounting: The premium steel printing cylinder is surface-ground, hard-chrome plated, and laser-engraved with precise grid lines and centerlines. This allows operators to align, hang, and mount plates with absolute accuracy in record time.

• Chambered Doctor Blade & Ceramic Anilox Roller: Equipped with a fully enclosed chambered doctor blade system paired with a laser-engraved ceramic anilox roller. It guarantees uniform ink film thickness for flawless, high-screen halftone printing while minimizing daily cleaning and maintenance.

• Smart Plate-Washing Memory & Auto-Reset: Features an intelligent plate-cleaning memory system. After mid-run plate wiping, the cylinders automatically reset to their exact pre-wash printing positions, eliminating manual recalibration and reducing test-sheet waste.

• Automatic Motorized Impression Control: The impression rollers feature computerized motorized lifting. The system memorizes specific print pressures per order and automatically adjusts the height, ensuring optimal ink transfer with every batch.

• Dual Control for Plate Loading (Footswitch & VFD): Includes an ergonomic heavy-duty footswitch for effortless plate loading and unloading, combined with variable frequency micro-adjustments for precise, hands-free plate alignment.

• Dynamic Balance Calibration: Every cylinder and internal roller undergoes advanced computer dynamic balance calibration, ensuring vibration-free, rock-solid operation even at peak production speeds.

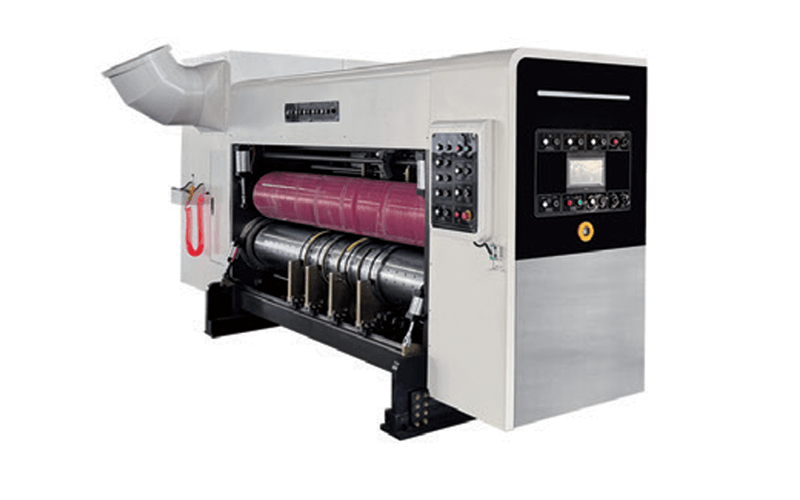

✂️ INTELLIGENT DIE-CUTTING SECTION

Precision finishing combined with smart hardware protection. This unit leverages digital automation and dynamic component positioning to maximize die-cutting accuracy while drastically extending the lifespan of your consumable anvil covers.

• PLC Digital Display & Rotary Encoder Calibration: Features a high-definition digital touchscreen integrated with an advanced PLC system and high-precision rotary encoders. The system automatically detects and calibrates alignments, enabling lightning-fast, effortless setup changes.

• Dual-Axis Motorized Die Position Controls: The cutting die cylinder supports 360-degree motorized circumferential phase adjustment during operation, alongside a motorized axial displacement adjustment of ±8mm, ensuring perfect centering for complex custom box profiles.

• Smart Anvil Protection (Automatic Lift Mechanism): During die phase adjustment or auto-zeroing routines, the polyurethane anvil roller automatically lifts away from the cutting cylinder. Once the adjustment is successfully completed, it safely returns to the working position, completely preventing accidental gouging or tearing of the premium anvil covers.

• Intelligent Phase Memory & Job Restoration: All motorized phase adjustments feature an integrated memory system. If a mid-run adjustment is required, the operator can restore the system back to its original slotting/cutting coordinates with a single click, eliminating trial-and-error waste.
